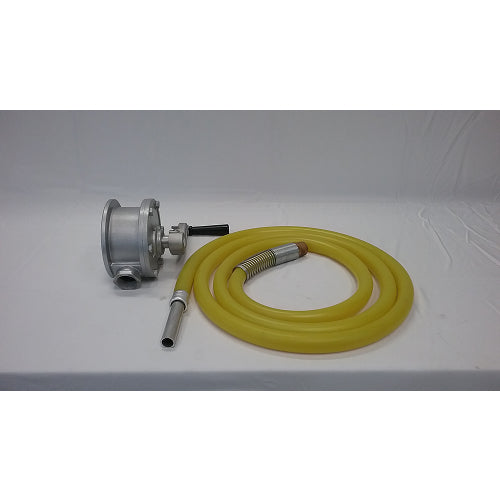

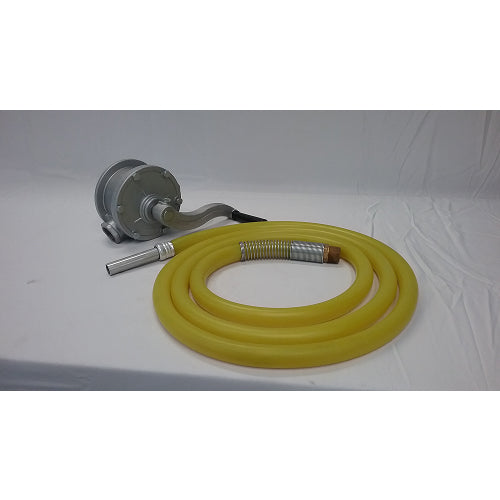

RP-1 Pump & Hose Combo
Available on backorder
Shipping Information
- All units ship in our exclusive Halvzy Crate
- Freight calculated based on order and destination
- Local Pick Up is an Option
Assembly Requirements:
- Minimal assembly required....attach your air supply and air fitting to the 1/4" Brass nipple and you are ready to raise and lower the lift
- Typically requires 2 people to flip lift right side up after unloading
- Cycle Vise or Condor Wheel Chock must be mounted with fastener package
A quality Pump and Hose Combination for any of the GC Series Fuel Caddies.The RP-1 Bi-directional rotary pump works in both directions allowing you to reclaim fuel from an auxiliary tank. Machined from a Die Cast Aluminum, the inside rotor and vane is also machined aluminum which provides an extremely long life and durability with fuels like gasoline and diesel.Designed and engineered specifically for HMC Industries, the RP-1 pump is an excellent alternative to the domestic GP-1 sand cast pump.
Specifications:
- Approved for Gasoline, Diesel, Kerosene, & Ethanol
- Bi-Directional by reversing crank rotation
- Input 1: Metric 32-1.5 Female Thread (Includes a Metric to 3/4" Adapter)
- Input 2: 3/4" NPT Female Thread
- Aluminum Housing
- Aluminum Crank with Plastic Handle
- Volume Delivery: 6 GPM @ 75 revolutions per minute
- Origin: China
The CH-12 Fuel Hose is our top of the line transparent fuel hose which is a PVC hose bonded with a polyurethane liner. The CH-12 Fuel Hose has an internal ground wire, 3/4" brass fitting with spring, and 3/4" aluminum nozzle.
Specifications:
- 8' Overall length
- 3/4" Aluminum nozzle on one end
- 3/4" NPT Threaded Brass Fitting on one end
- Full length inside grounding braided wire between the nozzle and the fitting
- Transparent to visually see the fuel flowing through the hose
